Braze-On Fittings

0403 Series

0403 Series

1

Review Item Number(s) on the table(s) below

2

Select Item Number

3

Enter a Quantity

4

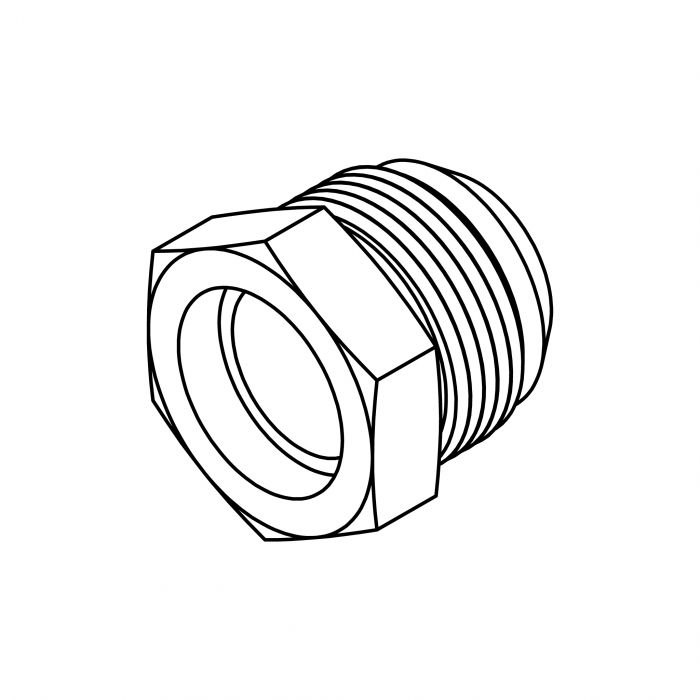

Bore-MJ Straight

Item NumberHH Item NumberTube OD1
Bore
2
Male JIC
0403-12-1012BORE-10MJ3/43/47/8-14
0403-20-2420BORE-24MJ1 1/41 1/41 7/8-12
0403-14-1414BORE-14MJ7/87/81 3/16-12
0403-20-2020BORE-20MJ1 1/41 1/41 5/8-12
0403-10-1210BORE-12MJ5/85/81 1/16-12
0403-20-1620BORE-16MJ1 1/41 1/41 5/16-12
0403-16-2016BORE-20MJ111 5/8-12
0403-12-0812BORE-8MJ3/43/43/4-16
0403-10-1010BORE-10MJ5/85/87/8-14
0403-10-0810BORE-8MJ5/85/83/4-16
0403-06-066BORE-6MJ3/83/89/16-18
0403-05-045BORE-4MJ5/165/167/16-20
0403-06-086BORE-8MJ3/83/83/4-16
0403-24-2024BORE-20MJ1 1/41 1/41 5/8-12
0403-12-1212BORE-12MJ3/43/41 1/16-12
0403-08-088BORE-8MJ1/21/23/4-16
0403-24-2424BORE-24MJ1 1/21 1/21 7/8-12
0403-16-1616BORE-16MJ111 5/16-12
0403-04-044BORE-4MJ1/41/47/16-20
0403-08-068BORE-6MJ1/21/29/16-18
0403-08-108BORE-10MJ1/21/27/8-14
0403-32-3232BORE-32MJ222 1/2-12
0403-16-1216BORE-12MJ111 1/16-12
0403-05-055BORE-5MJ5/165/161/2-20

Additional Information

Name Bore-MJ Straight
