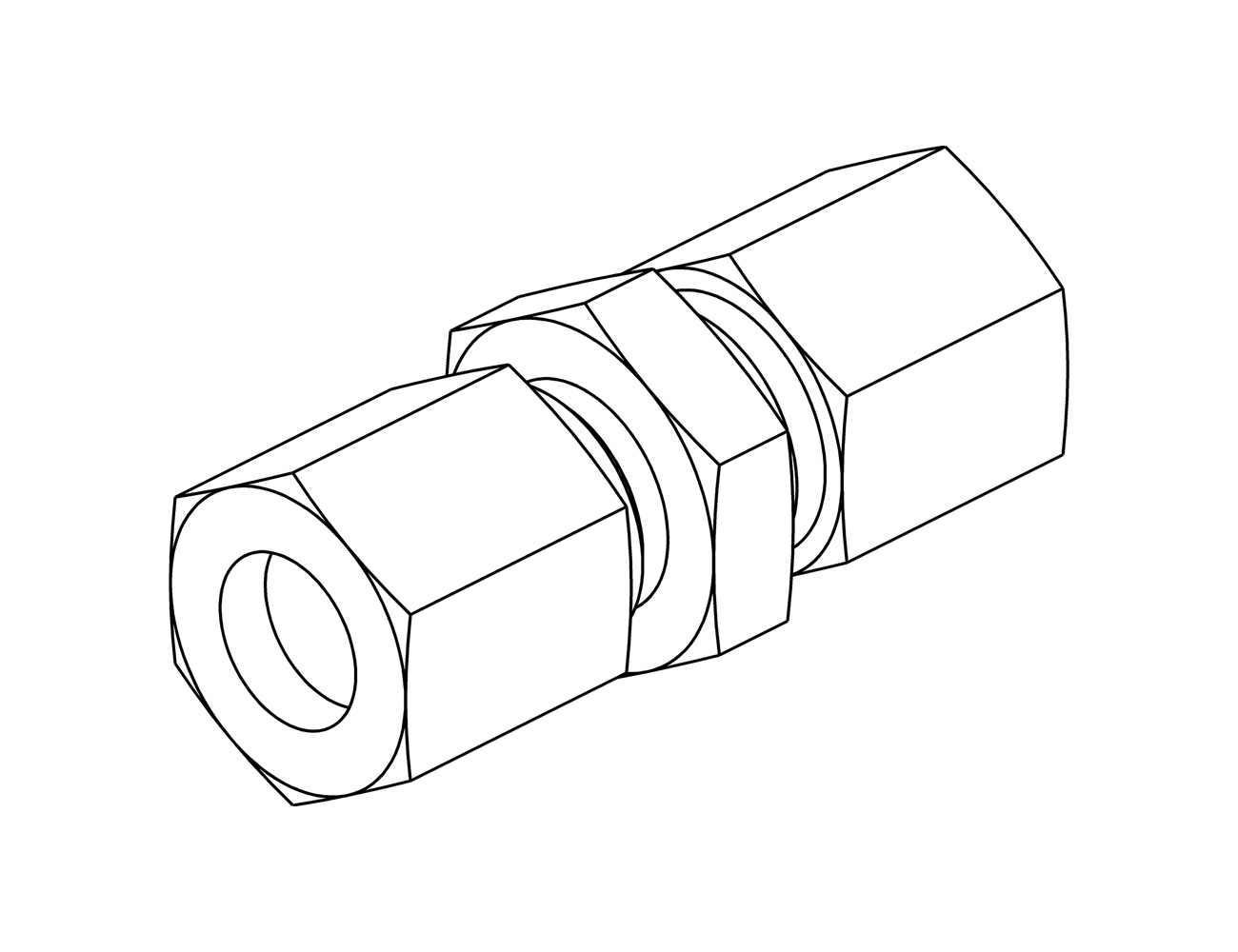

FLS-FLS Tube Union Large Hex Straight
SAE 080119
| Item Number | HH Item Number | Tube OD | Flareless Bite Type | Flareless Bite Type |
|---|---|---|---|---|
| C2403-LH-04-04 | 4FLS-4FLS-LH | 1/4 | 7/16-20 | 7/16-20 |
| C2403-LH-06-04 | 6FLS-4FLS-LH | 3/8 | 9/16-18 | 7/16-20 |
| C2403-LH-06-06 | 6FLS-6FLS-LH | 3/8 | 9/16-18 | 9/16-18 |
| C2403-LH-08-06 | 8FLS-6FLS-LH | 1/2 | 3/4-16 | 9/16-18 |
| C2403-LH-08-08 | 8FLS-8FLS-LH | 1/2 | 3/4-16 | 3/4-16 |
| C2403-LH-10-08 | 10FLS-8FLS-LH | 5/8 | 7/8-14 | 3/4-16 |
| C2403-LH-10-10 | 10FLS-10FLS-LH | 5/8 | 7/8-14 | 7/8-14 |
| C2403-LH-12-12 | 12FLS-12FLS-LH | 3/4 | 1 1/16-12 | 1 1/16-12 |
| C2403-LH-16-16 | 16FLS-16FLS-LH | 1 | 1 5/16-12 | 1 5/16-12 |
