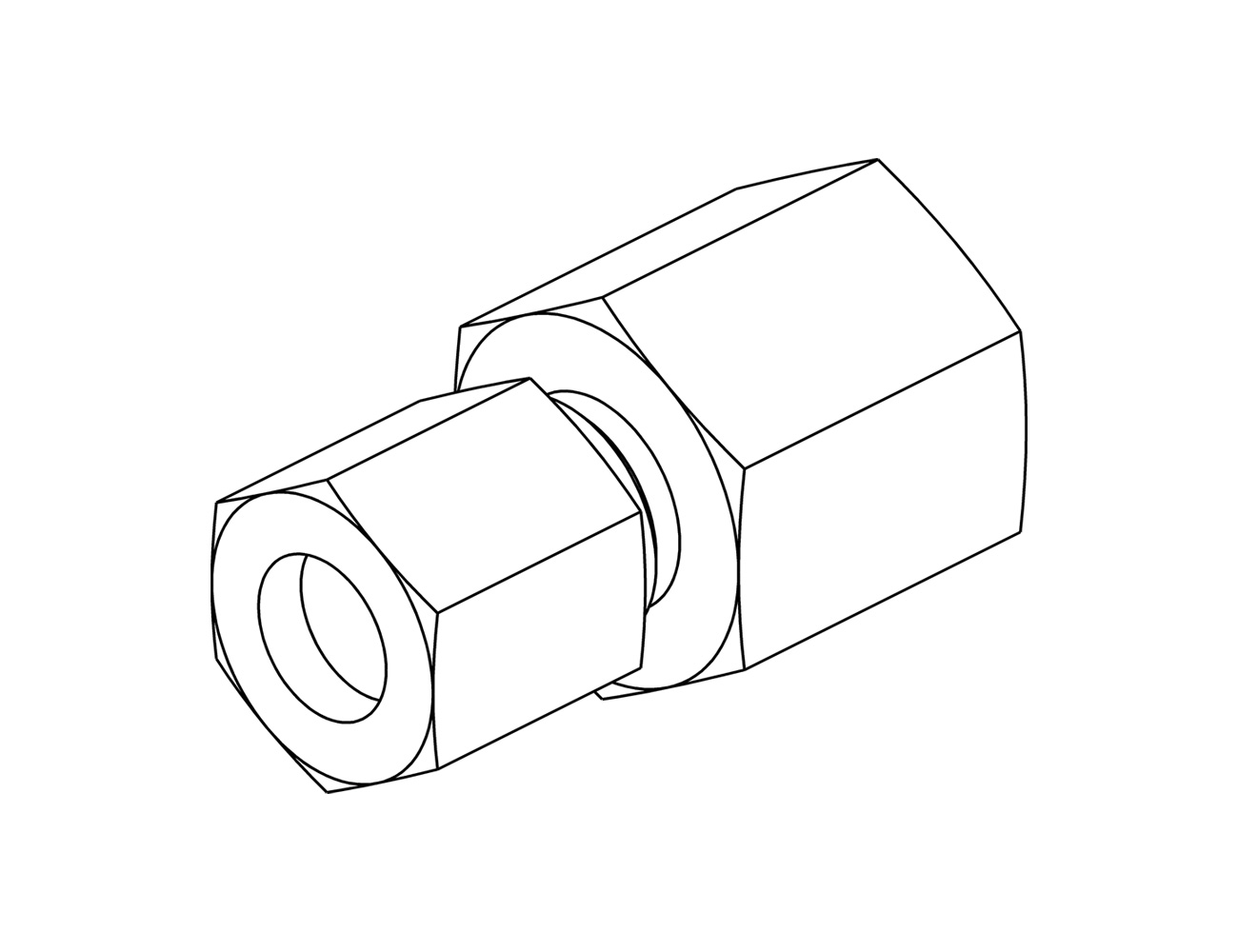

C2405 Series

FLS-FP Straight

SAE 080103

Item Number HH Item Number Tube OD Flareless Bite Type Female Pipe
C2405-02-02 2FLS-2FP 1/8 5/16-24 1/8-27
C2405-04-02 4FLS-2FP 1/4 7/16-20 1/8-27
C2405-04-04 4FLS-4FP 1/4 7/16-20 1/4-18
C2405-05-02 5FLS-2FP 5/16 1/2-20 1/8-27
C2405-05-04 5FLS-4FP 5/16 1/2-20 1/4-18
C2405-06-04 6FLS-4FP 3/8 9/16-18 1/4-18
C2405-06-06 6FLS-6FP 3/8 9/16-18 3/8-18
C2405-06-08 6FLS-8FP 3/8 9/16-18 1/2-14
C2405-06-12 6FLS-12FP 3/8 9/16-18 3/4-14
C2405-08-04 8FLS-4FP 1/2 3/4-16 1/4-18
C2405-08-06 8FLS-6FP 1/2 3/4-16 3/8-18
C2405-08-08 8FLS-8FP 1/2 3/4-16 1/2-14
C2405-10-06 10FLS-6FP 5/8 7/8-14 3/8-18
C2405-10-08 10FLS-8FP 5/8 7/8-14 1/2-14
C2405-12-12 12FLS-12FP 3/4 1 1/16-12 3/4-14
C2405-14-12 14FLS-12FP 7/8 1 3/16-12 3/4-14
C2405-16-16 16FLS-16FP 1 1 5/16-12 1-11 1/2
C2405-20-20 20FLS-20FP 1 1/4 1 5/8-12 1 1/4-11 1/2
C2405-24-24 24FLS-24FP 1 1/2 1 7/8-12 1 1/2-11 1/2
