Home Page2403-LH Series
Need Help with the installation?
Learn technical details.

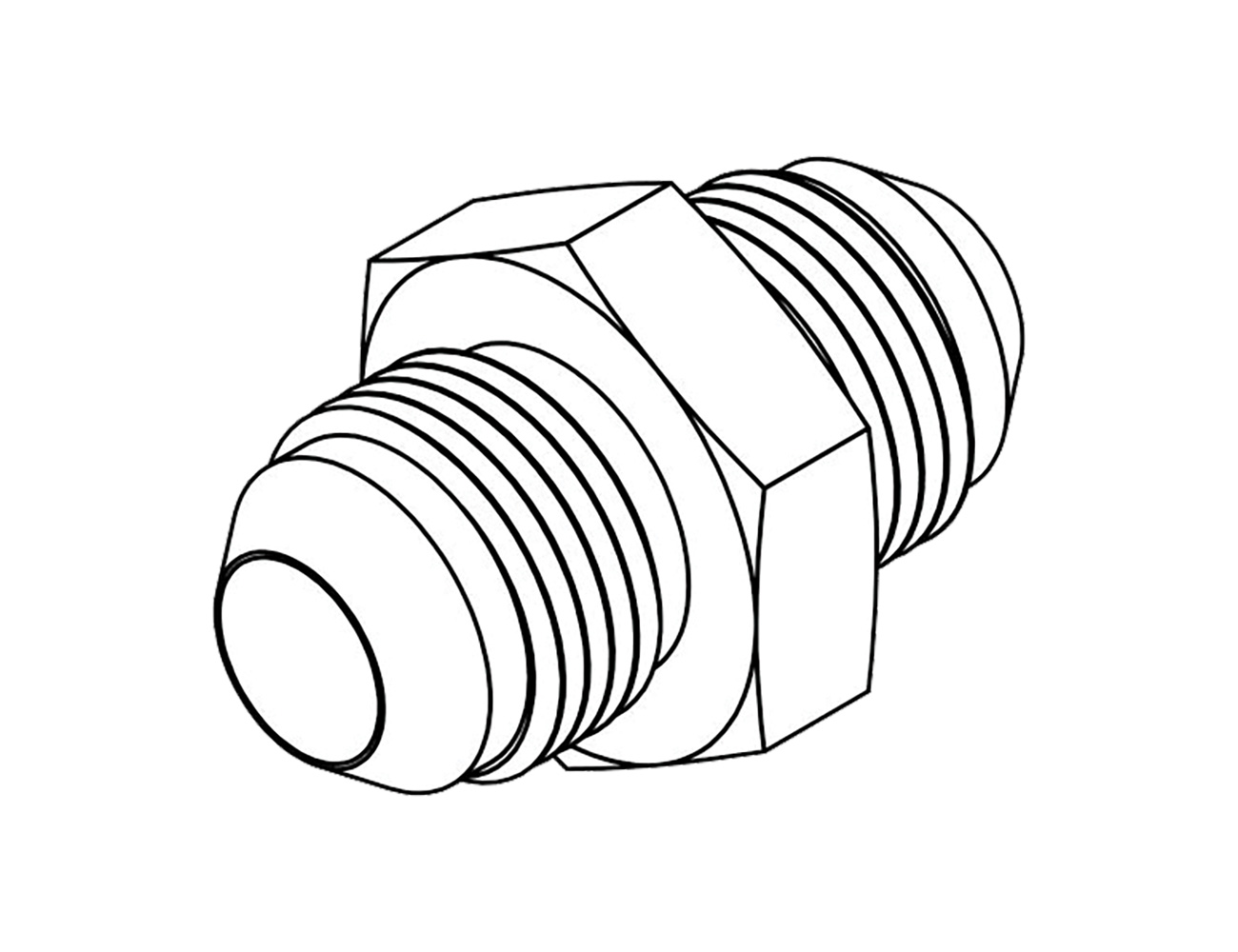

MJ-MJ Straight Large Hex
SAE 070119
| Item Number | HH Item Number | Tube OD | Male JIC | Male JIC |
|---|---|---|---|---|
| 2403-LH-02-02 | 2MJ-2MJ-LH | 1/8 | 5/16-24 | 5/16-24 |
| 2403-LH-03-02 | 3MJ-2MJ-LH | 3/16 x 1/8 | 3/8-24 | 5/16-24 |
| 2403-LH-03-03 | 3MJ-3MJ-LH | 3/16 | 3/8-24 | 3/8-24 |
| 2403-LH-04-02 | 4MJ-2MJ-LH | 1/4 x 1/8 | 7/16-20 | 5/16-24 |
| 2403-LH-04-03 | 4MJ-3MJ-LH | 1/4 x 3/16 | 7/16-20 | 3/8-24 |
| 2403-LH-04-04 | 4MJ-4MJ-LH | 1/4 | 7/16-20 | 7/16-20 |
| 2403-LH-05-03 | 5MJ-3MJ-LH | 5/16 x 3/16 | 1/2-20 | 3/8-24 |
| 2403-LH-05-04 | 5MJ-4MJ-LH | 5/16 x 1/4 | 1/2-20 | 7/16-20 |
| 2403-LH-05-05 | 5MJ-5MJ-LH | 5/16 | 1/2-20 | 1/2-20 |
| 2403-LH-06-04 | 6MJ-4MJ-LH | 3/8 x 1/4 | 9/16-18 | 7/16-20 |
| 2403-LH-06-05 | 6MJ-5MJ-LH | 3/8 x 5/16 | 9/16-18 | 1/2-20 |
| 2403-LH-06-06 | 6MJ-6MJ-LH | 3/8 | 9/16-18 | 9/16-18 |
| 2403-LH-08-04 | 8MJ-4MJ-LH | 1/2 x 1/4 | 3/4-16 | 7/16-20 |
| 2403-LH-08-05 | 8MJ-5MJ-LH | 1/2 x 5/16 | 3/4-16 | 1/2-20 |
| 2403-LH-08-06 | 8MJ-6MJ-LH | 1/2 x 3/8 | 3/4-16 | 9/16-18 |
| 2403-LH-08-08 | 8MJ-8MJ-LH | 1/2 | 3/4-16 | 3/4-16 |
| 2403-LH-10-04 | 10MJ-4MJ-LH | 5/8 x 1/4 | 7/8-14 | 7/16-20 |
| 2403-LH-10-06 | 10MJ-6MJ-LH | 5/8 x 3/8 | 7/8-14 | 9/16-18 |
| 2403-LH-10-08 | 10MJ-8MJ-LH | 5/8 x 1/2 | 7/8-14 | 3/4-16 |
| 2403-LH-10-10 | 10MJ-10MJ-LH | 5/8 | 7/8-14 | 7/8-14 |
| 2403-LH-12-04 | 12MJ-4MJ-LH | 3/4 x 1/4 | 1 1/16-12 | 7/16-20 |
| 2403-LH-12-05 | 12MJ-5MJ-LH | 3/4 x 5/16 | 1 1/16-12 | 1/2-20 |
| 2403-LH-12-08 | 12MJ-8MJ-LH | 3/4 x 1/2 | 1 1/16-12 | 3/4-16 |
| 2403-LH-12-10 | 12MJ-10MJ-LH | 3/4 x 5/8 | 1 1/16-12 | 7/8-14 |
| 2403-LH-12-12 | 12MJ-12MJ-LH | 3/4 | 1 1/16-12 | 1 1/16-12 |
| 2403-LH-14-14 | 14MJ-14MJ-LH | 7/8 | 1 3/16-12 | 1 3/16-12 |
| 2403-LH-16-04 | 16MJ-4MJ-LH | 1 x 1/4 | 1 5/16-12 | 7/16-20 |
| 2403-LH-16-08 | 16MJ-8MJ-LH | 1 x 1/2 | 1 5/16-12 | 3/4-16 |
| 2403-LH-16-10 | 16MJ-10MJ-LH | 1 x 5/8 | 1 5/16-12 | 7/8-14 |
| 2403-LH-16-12 | 16MJ-12MJ-LH | 1 x 3/4 | 1 5/16-12 | 1 1/16-12 |
| 2403-LH-16-16 | 16MJ-16MJ-LH | 1 | 1 5/16-12 | 1 5/16-12 |
| 2403-LH-20-10 | 20MJ-10MJ-LH | 1 1/4 x 5/8 | 1 5/8-12 | 7/8-14 |
| 2403-LH-20-12 | 20MJ-12MJ-LH | 1 1/4 x 3/4 | 1 5/8-12 | 1 1/16-12 |
| 2403-LH-20-16 | 20MJ-16MJ-LH | 1 1/4 x 1 | 1 5/8-12 | 1 5/16-12 |
| 2403-LH-20-20 | 20MJ-20MJ-LH | 1 1/4 | 1 5/8-12 | 1 5/8-12 |
| 2403-LH-24-08 | 24MJ-8MJ-LH | 1 1/2 x 1/2 | 1 7/8-12 | 3/4-16 |
| 2403-LH-24-16 | 24MJ-16MJ-LH | 1 1/2 x 1 | 1 7/8-12 | 1 5/16-12 |
| 2403-LH-24-20 | 24MJ-20MJ-LH | 1 1/2 x 1 1/4 | 1 7/8-12 | 1 5/8-12 |
| 2403-LH-24-24 | 24MJ-24MJ-LH | 1 1/2 | 1 7/8-12 | 1 7/8-12 |
| 2403-LH-32-32 | 32MJ-32MJ-LH | 2 | 2-12 | 2-12 |
