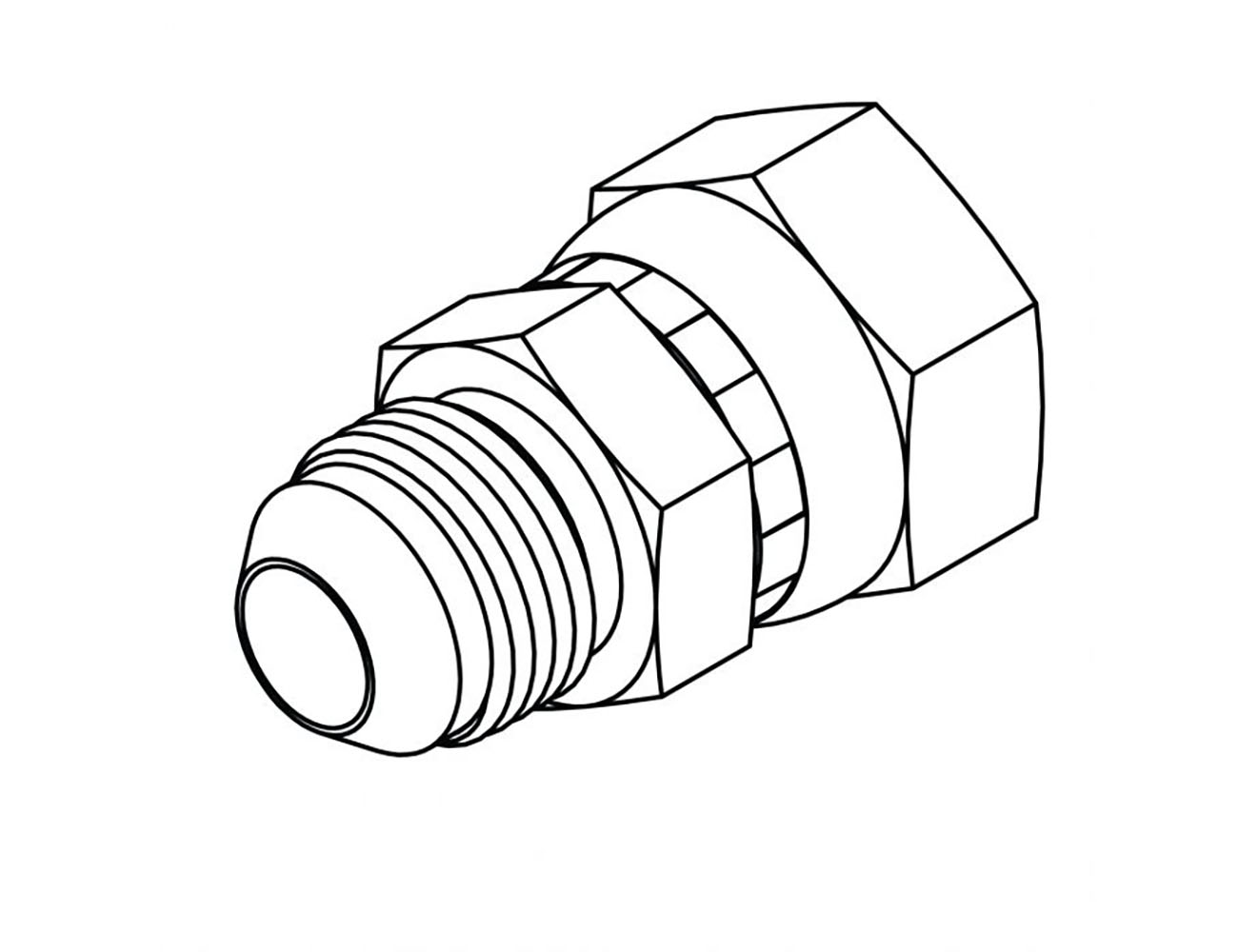

7007-L Series

Select Item Number (reference table below)

Enter Quantity

Need Help with the installation?
Learn technical details.

MJ-FMX Light Metric

Item Number	HH Item Number	Tube OD	Male JIC	Female Metric Swivel
7007-04-L06-12	4MJ-12FMX-L6x1.5	1/4	7/16-20	12 x 1.5
7007-05-L06-12	5MJ-12FMX-L6x1.5	5/16	1/2-20	12 x 1.5
7007-06-L08-14	6MJ-14FMX-L8x1.5	3/8	9/16-18	14 x 1.5
7007-06-L10-16	6MJ-16FMX-L10x1.5	3/8	9/16-18	16 x 1.5
7007-06-L12-18	6MJ-18FMX-L12x1.5	3/8	9/16-18	18 x 1.5
7007-06-L15-22	6MJ-22FMX-L15x1.5	3/8	9/16-18	22 x 1.5
7007-08-L10-16	8MJ-16FMX-L10x1.5	1/2	3/4-16	16 x 1.5
7007-08-L12-18	8MJ-18FMX-L12x1.5	1/2	3/4-16	18 x 1.5
7007-08-L15-22	8MJ-22FMX-L15x1.5	1/2	3/4-16	22 x 1.5
7007-10-L12-18	10MJ-18FMX-L12x1.5	5/8	7/8-14	18 x 1.5
7007-10-L15-20	10MJ-20FMX-L15x1.5	5/8	7/8-14	20 x 1.5
7007-10-L15-22	10MJ-22FMX-L15x1.5	5/8	7/8-14	22 x 1.5
7007-12-L22-30	12MJ-30FMX-L22x1.5	3/4	1 1/16-12	30 x 1.5
