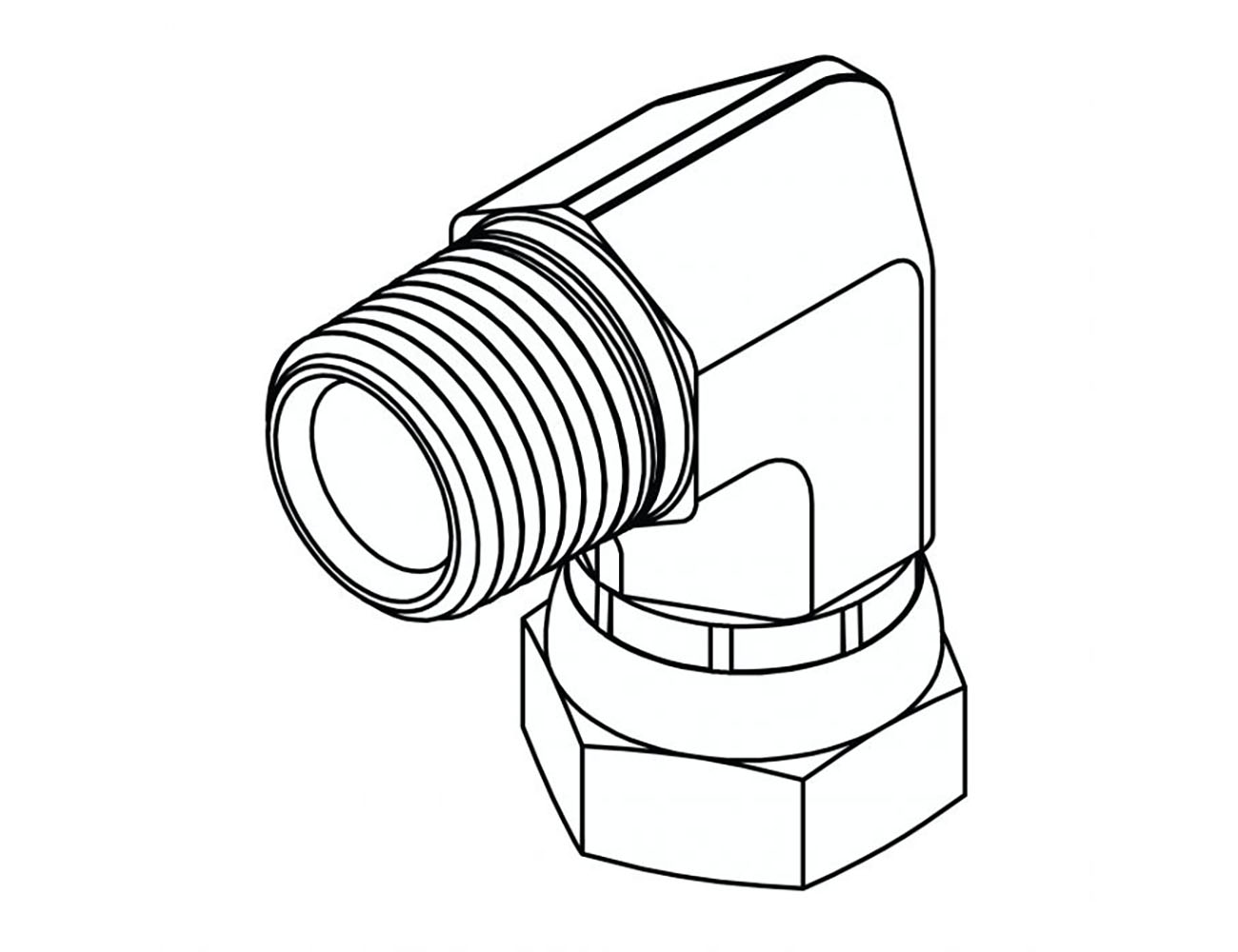

MP-FPX 90°
SAE 140230
| Item Number | HH Item Number | Male Pipe | Female Pipe Swivel |
|---|---|---|---|
| 1501-02-02 | 2MP-2FPX90 | 1/8-27 | 1/8-27 |
| 1501-02-04 | 2MP-4FPX90 | 1/8-27 | 1/4-18 |
| 1501-04-02 | 4MP-2FPX90 | 1/4-18 | 1/8-27 |
| 1501-04-04 | 4MP-4FPX90 | 1/4-18 | 1/4-18 |
| 1501-04-06 | 4MP-6FPX90 | 1/4-18 | 3/8-18 |
| 1501-04-08 | 4MP-8FPX90 | 1/4-18 | 1/2-14 |
| 1501-06-04 | 6MP-4FPX90 | 3/8-18 | 1/4-18 |
| 1501-06-06 | 6MP-6FPX90 | 3/8-18 | 3/8-18 |
| 1501-06-08 | 6MP-8FPX90 | 3/8-18 | 1/2-14 |
| 1501-06-12 | 6MP-12FPX90 | 3/8-18 | 3/4-14 |
| 1501-08-04 | 8MP-4FPX90 | 1/2-14 | 1/4-18 |
| 1501-08-06 | 8MP-6FPX90 | 1/2-14 | 3/8-18 |
| 1501-08-08 | 8MP-8FPX90 | 1/2-14 | 1/2-14 |
| 1501-08-12 | 8MP-12FPX90 | 1/2-14 | 3/4-14 |
| 1501-12-04 | 12MP-4FPX90 | 3/4-14 | 1/4-18 |
| 1501-12-06 | 12MP-6FPX90 | 3/4-14 | 3/8-18 |
| 1501-12-08 | 12MP-8FPX90 | 3/4-14 | 1/2-14 |
| 1501-12-12 | 12MP-12FPX90 | 3/4-14 | 3/4-14 |
| 1501-12-16 | 12MP-16FPX90 | 3/4-14 | 1-11 1/2 |
| 1501-12-20 | 12MP-20FPX90 | 3/4-14 | 1 1/4-11 1/2 |
| 1501-16-08 | 16MP-8FPX90 | 1-11 1/2 | 1/2-14 |
| 1501-16-12 | 16MP-12FPX90 | 1-11 1/2 | 3/4-14 |
| 1501-16-16 | 16MP-16FPX90 | 1-11 1/2 | 1-11 1/2 |
| 1501-16-20 | 16MP-20FPX90 | 1-11 1/2 | 1 1/4-11 1/2 |
| 1501-20-12 | 20MP-12FPX90 | 1 1/4-11 1/2 | 3/4-14 |
| 1501-20-16 | 20MP-16FPX90 | 1 1/4-11 1/2 | 1-11 1/2 |
| 1501-20-20 | 20MP-20FPX90 | 1 1/4-11 1/2 | 1 1/4-11 1/2 |
| 1501-20-24 | 20MP-24FPX90 | 1 1/4-11 1/2 | 1 1/2-11 1/2 |
| 1501-24-20 | 24MP-20FPX90 | 1 1/2-11 1/2 | 1 1/4-11 1/2 |
| 1501-24-24 | 24MP-24FPX90 | 1 1/2-11 1/2 | 1 1/2-11 1/2 |
| 1501-32-32 | 32MP-32FPX90 | 2-11 1/2 | 2-11 1/2 |
