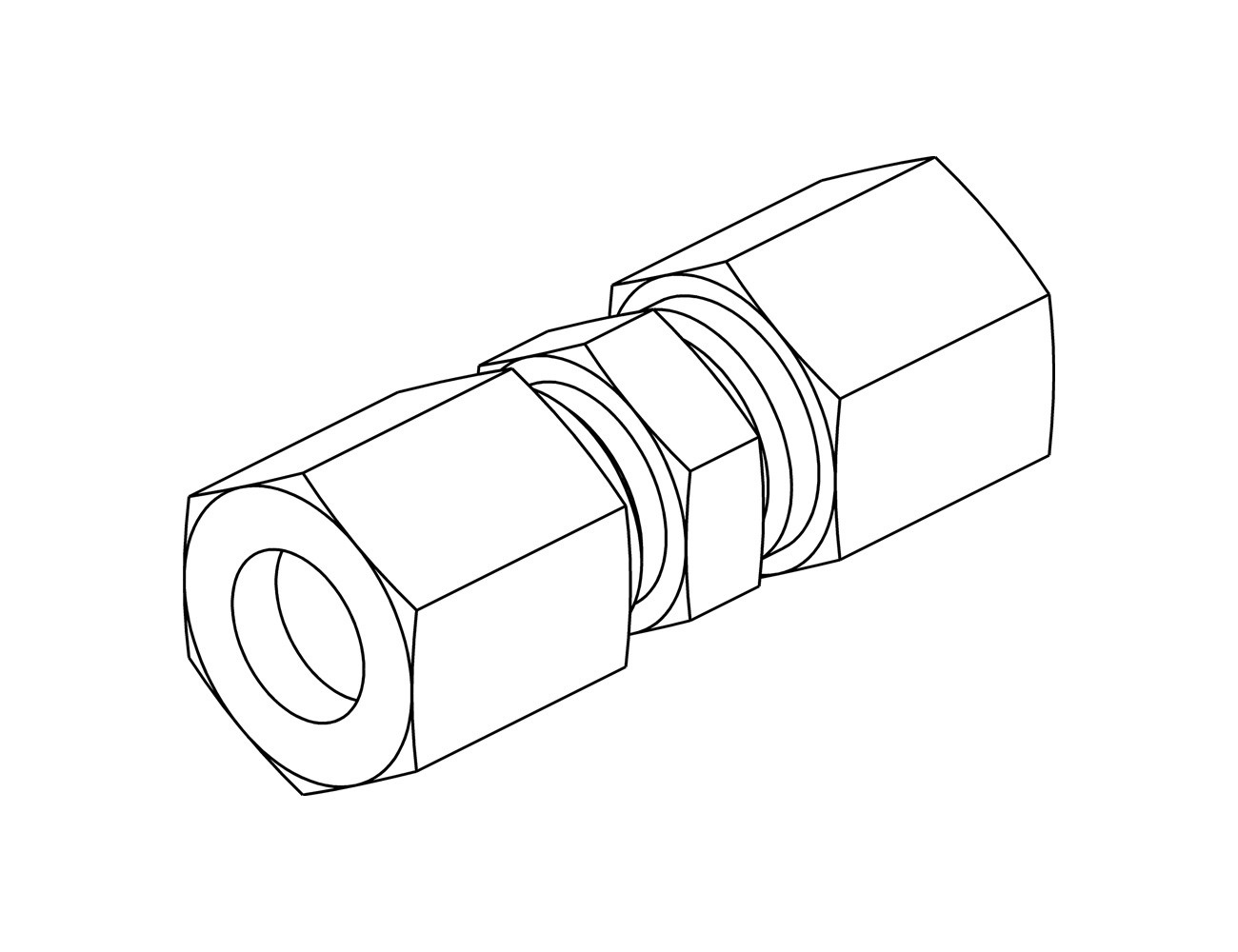

FLS-FLS Tube Union Straight
SAE 080101
| Item Number | HH Item Number | Tube OD | Flareless Bite Type | Flareless Bite Type |
|---|---|---|---|---|
| C2403-02-02 | 2FLS-2FLS | 1/8 | 5/16-24 | 5/16-24 |
| C2403-03-03 | 3FLS-3FLS | 3/16 | 3/8-24 | 3/8-24 |
| C2403-04-04 | 4FLS-4FLS | 1/4 | 7/16-20 | 7/16-20 |
| C2403-05-04 | 5FLS-4FLS | 5/16 | 1/2-20 | 7/16-20 |
| C2403-05-05 | 5FLS-5FLS | 5/16 | 1/2-20 | 1/2-20 |
| C2403-06-04 | 6FLS-4FLS | 3/8 | 9/16-18 | 7/16-20 |
| C2403-06-06 | 6FLS-6FLS | 3/8 | 9/16-18 | 9/16-18 |
| C2403-08-06 | 8FLS-6FLS | 1/2 | 3/4-16 | 9/16-18 |
| C2403-08-08 | 8FLS-8FLS | 1/2 | 3/4-16 | 3/4-16 |
| C2403-10-10 | 10FLS-10FLS | 5/8 | 7/8-14 | 7/8-14 |
| C2403-12-08 | 12FLS-8FLS | 3/4 | 1 1/16-12 | 3/4-16 |
| C2403-12-12 | 12FLS-12FLS | 3/4 | 1 1/16-12 | 1 1/16-12 |
| C2403-14-14 | 14FLS-14FLS | 7/8 | 1 3/16-12 | 1 3/16-12 |
| C2403-16-16 | 16FLS-16FLS | 1 | 1 5/16-12 | 1 5/16-12 |
| C2403-20-20 | 20FLS-20FLS | 1 1/4 | 1 5/8-12 | 1 5/8-12 |
| C2403-24-24 | 24FLS-24FLS | 1 1/2 | 1 7/8-12 | 1 7/8-12 |
| C2403-32-32 | 32FLS-32FLS | 2 | 2 1/2-12 | 2 1/2-12 |
