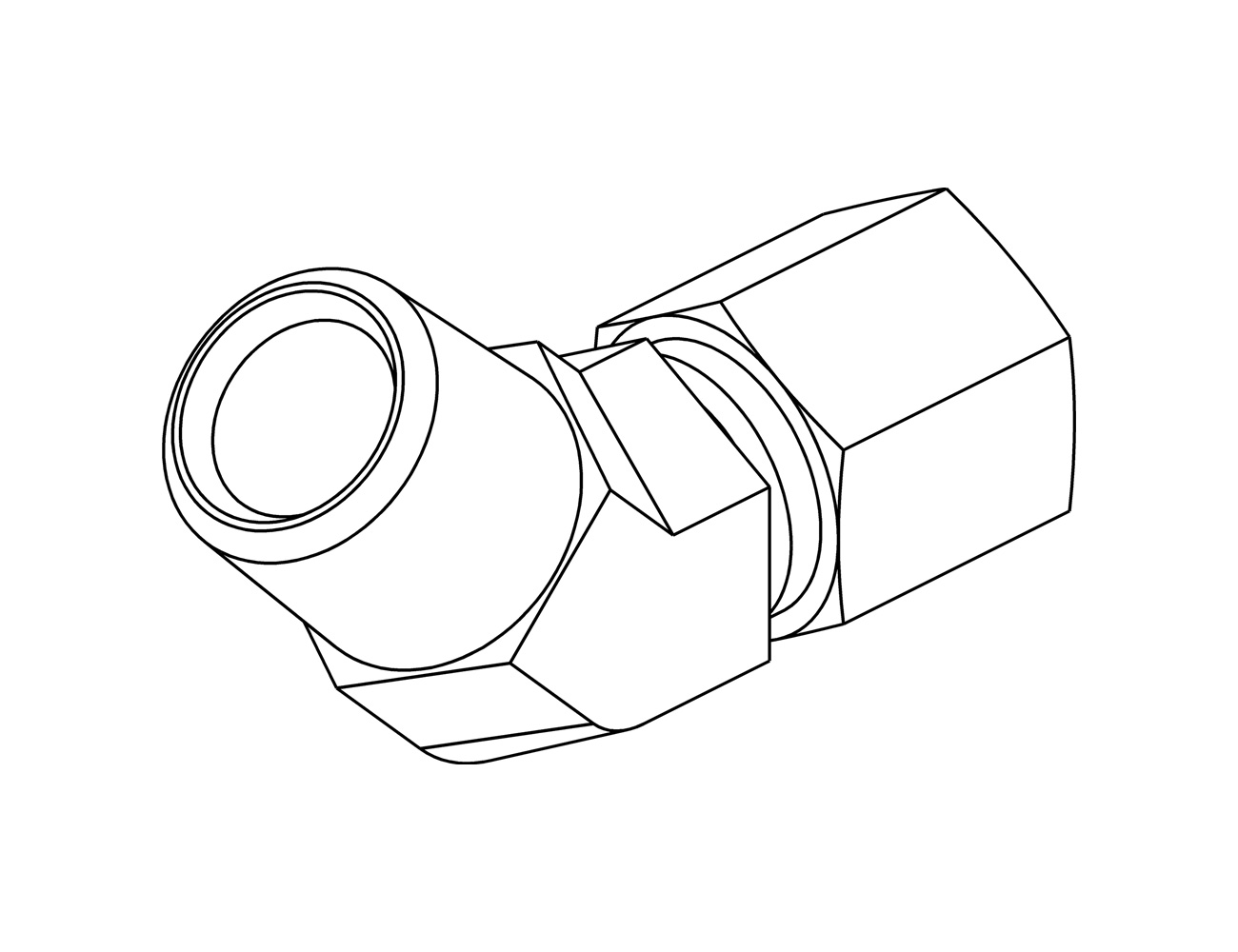

Home PageC2503 Series
Need Help with the installation?
Learn technical details.
FLS-MP 45°
SAE 080302
| Item Number | HH Item Number | Tube OD | Flareless Bite Type | Male Pipe |
|---|---|---|---|---|
| C2503-04-02 | 4FLS-2MP45 | 1/4 | 7/16-20 | 1/8-27 |
| C2503-04-04 | 4FLS-4MP45 | 1/4 | 7/16-20 | 1/4-18 |
| C2503-05-02 | 5FLS-2MP45 | 5/16 | 1/2-20 | 1/8-27 |
| C2503-06-04 | 6FLS-4MP45 | 3/8 | 9/16-18 | 1/4-18 |
| C2503-06-06 | 6FLS-6MP45 | 3/8 | 9/16-18 | 3/8-18 |
| C2503-06-08 | 6FLS-8MP45 | 3/8 | 9/16-18 | 1/2-14 |
| C2503-08-06 | 8FLS-6MP45 | 1/2 | 3/4-16 | 3/8-18 |
| C2503-08-08 | 8FLS-8MP45 | 1/2 | 3/4-16 | 1/2-14 |
| C2503-08-12 | 8FLS-12MP45 | 1/2 | 3/4-16 | 3/4-14 |
| C2503-10-06 | 10FLS-6MP45 | 5/8 | 7/8-14 | 3/8-18 |
| C2503-10-08 | 10FLS-8MP45 | 5/8 | 7/8-14 | 1/2-14 |
| C2503-12-08 | 12FLS-8MP45 | 3/4 | 1 1/16-12 | 1/2-14 |
| C2503-12-12 | 12FLS-12MP45 | 3/4 | 1 1/16-12 | 3/4-14 |
| C2503-14-12 | 14FLS-12MP45 | 7/8 | 1 3/16-12 | 3/4-14 |
| C2503-16-16 | 16FLS-16MP45 | 1 | 1 5/16-12 | 1-11 1/2 |
| C2503-20-20 | 20FLS-20MP45 | 1 1/4 | 1 5/8-12 | 1 1/4-11 1/2 |
