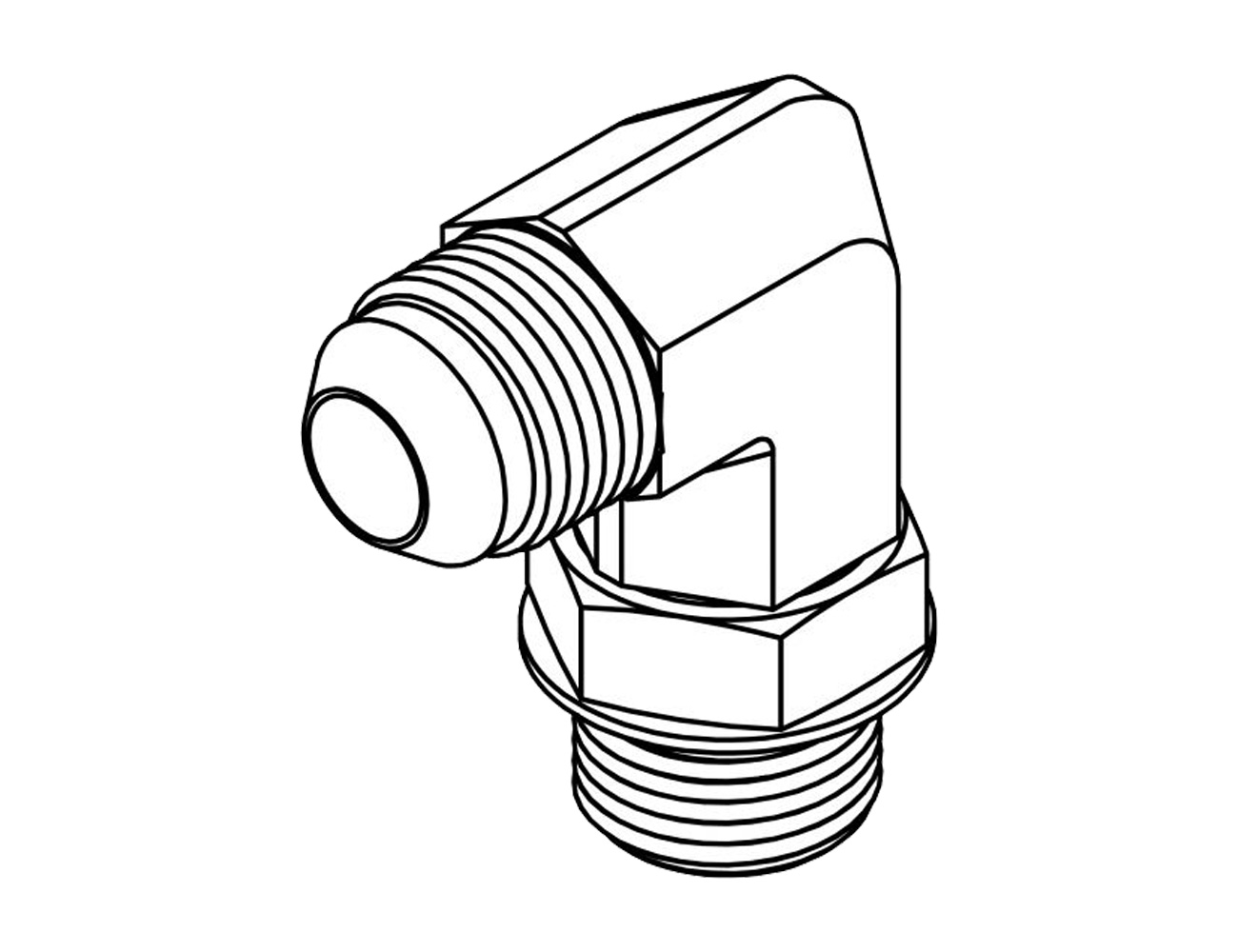

MJ-MB 90°
SAE 070220
| Item Number | HH Item Number | Tube OD | Male JIC | Male ORB |
|---|---|---|---|---|
| 6801-02-02-NWO | 2MJ-2MB90 | 1/8 | 5/16-24 | 5/16-24 |
| 6801-02-04-NWO | 2MJ-4MB90 | 1/8 | 5/16-24 | 7/16-20 |
| 6801-03-03-NWO | 3MJ-3MB90 | 3/16 | 3/8-24 | 3/8-24 |
| 6801-03-04-NWO | 3MJ-4MB90 | 3/16 | 3/8-24 | 7/16-20 |
| 6801-04-02-NWO | 4MJ-2MB90 | 1/4 | 7/16-20 | 5/16-24 |
| 6801-04-03-NWO | 4MJ-3MB90 | 1/4 | 7/16-20 | 3/8-24 |
| 6801-04-04-NWO | 4MJ-4MB90 | 1/4 | 7/16-20 | 7/16-20 |
| 6801-04-05-NWO | 4MJ-5MB90 | 1/4 | 7/16-20 | 1/2-20 |
| 6801-04-06-NWO | 4MJ-6MB90 | 1/4 | 7/16-20 | 9/16-18 |
| 6801-04-08-NWO | 4MJ-8MB90 | 1/4 | 7/16-20 | 3/4-16 |
| 6801-05-04-NWO | 5MJ-4MB90 | 5/16 | 1/2-20 | 7/16-20 |
| 6801-05-05-NWO | 5MJ-5MB90 | 5/16 | 1/2-20 | 1/2-20 |
| 6801-05-06-NWO | 5MJ-6MB90 | 5/16 | 1/2-20 | 9/16-18 |
| 6801-05-08-NWO | 5MJ-8MB90 | 5/16 | 1/2-20 | 3/4-16 |
| 6801-05-10-NWO | 5MJ-10MB90 | 5/16 | 1/2-20 | 7/8-14 |
| 6801-06-02-NWO | 6MJ-2MB90 | 3/8 | 9/16-18 | 5/16-24 |
| 6801-06-04-NWO | 6MJ-4MB90 | 3/8 | 9/16-18 | 7/16-20 |
| 6801-06-05-NWO | 6MJ-5MB90 | 3/8 | 9/16-18 | 1/2-20 |
| 6801-06-06-NWO | 6MJ-6MB90 | 3/8 | 9/16-18 | 9/16-18 |
| 6801-06-08-NWO | 6MJ-8MB90 | 3/8 | 9/16-18 | 3/4-16 |
| 6801-06-10-NWO | 6MJ-10MB90 | 3/8 | 9/16-18 | 7/8-14 |
| 6801-06-12-NWO | 6MJ-12MB90 | 3/8 | 9/16-18 | 1 1/16-12 |
| 6801-08-04-NWO | 8MJ-4MB90 | 1/2 | 3/4-16 | 7/16-20 |
| 6801-08-05-NWO | 8MJ-5MB90 | 1/2 | 3/4-16 | 1/2-20 |
| 6801-08-06-NWO | 8MJ-6MB90 | 1/2 | 3/4-16 | 9/16-18 |
| 6801-08-08-NWO | 8MJ-8MB90 | 1/2 | 3/4-16 | 3/4-16 |
| 6801-08-10-NWO | 8MJ-10MB90 | 1/2 | 3/4-16 | 7/8-14 |
| 6801-08-12-NWO | 8MJ-12MB90 | 1/2 | 3/4-16 | 1 1/16-12 |
| 6801-08-16-NWO | 8MJ-16MB90 | 1/2 | 3/4-16 | 1 5/16-12 |
| 6801-10-06-NWO | 10MJ-6MB90 | 5/8 | 7/8-14 | 9/16-18 |
| 6801-10-08-NWO | 10MJ-8MB90 | 5/8 | 7/8-14 | 3/4-16 |
| 6801-10-10-NWO | 10MJ-10MB90 | 5/8 | 7/8-14 | 7/8-14 |
| 6801-10-12-NWO | 10MJ-12MB90 | 5/8 | 7/8-14 | 1 1/16-12 |
| 6801-10-16-NWO | 10MJ-16MB90 | 5/8 | 7/8-14 | 1 5/16-12 |
| 6801-10-20-NWO | 10MJ-20MB90 | 5/8 | 7/8-14 | 1 5/8-12 |
| 6801-12-06-NWO | 12MJ-6MB90 | 3/4 | 1 1/16-12 | 9/16-18 |
| 6801-12-08-NWO | 12MJ-8MB90 | 3/4 | 1 1/16-12 | 3/4-16 |
| 6801-12-10-NWO | 12MJ-10MB90 | 3/4 | 1 1/16-12 | 7/8-14 |
| 6801-12-12-NWO | 12MJ-12MB90 | 3/4 | 1 1/16-12 | 1 1/16-12 |
| 6801-12-14-NWO | 12MJ-14MB90 | 3/4 | 1 1/16-12 | 1 3/16-12 |
| 6801-12-16-NWO | 12MJ-16MB90 | 3/4 | 1 1/16-12 | 1 5/16-12 |
| 6801-12-20-NWO | 12MJ-20MB90 | 3/4 | 1 1/16-12 | 1 5/8-12 |
| 6801-14-12-NWO | 14MJ-12MB90 | 7/8 | 1 3/16-12 | 1 1/16-12 |
| 6801-14-14-NWO | 14MJ-14MB90 | 7/8 | 1 3/16-12 | 1 3/16-12 |
| 6801-14-16-NWO | 14MJ-16MB90 | 7/8 | 1 3/16-12 | 1 5/16-12 |
| 6801-16-08-NWO | 16MJ-8MB90 | 1 | 1 5/16-12 | 3/4-16 |
| 6801-16-10-NWO | 16MJ-10MB90 | 1 | 1 5/16-12 | 7/8-14 |
| 6801-16-12-NWO | 16MJ-12MB90 | 1 | 1 5/16-12 | 1 1/16-12 |
| 6801-16-14-NWO | 16MJ-14MB90 | 1 | 1 5/16-12 | 1 3/16-12 |
| 6801-16-16-NWO | 16MJ-16MB90 | 1 | 1 5/16-12 | 1 5/16-12 |
| 6801-16-20-NWO | 16MJ-20MB90 | 1 | 1 5/16-12 | 1 5/8-12 |
| 6801-16-24-NWO | 16MJ-24MB90 | 1 | 1 5/16-12 | 1 7/8-12 |
| 6801-20-12-NWO | 20MJ-12MB90 | 1 1/4 | 1 5/8-12 | 1 1/16-12 |
| 6801-20-14-NWO | 20MJ-14MB90 | 1 1/4 | 1 5/8-12 | 1 3/16-12 |
| 6801-20-16-NWO | 20MJ-16MB90 | 1 1/4 | 1 5/8-12 | 1 5/16-12 |
| 6801-20-20-NWO | 20MJ-20MB90 | 1 1/4 | 1 5/8-12 | 1 5/8-12 |
| 6801-20-24-NWO | 20MJ-24MB90 | 1 1/4 | 1 5/8-12 | 1 7/8-12 |
| 6801-24-16-NWO | 24MJ-16MB90 | 1 1/2 | 1 7/8-12 | 1 5/16-12 |
| 6801-24-20-NWO | 24MJ-20MB90 | 1 1/2 | 1 7/8-12 | 1 5/8-12 |
| 6801-24-24-NWO | 24MJ-24MB90 | 1 1/2 | 1 7/8-12 | 1 7/8-12 |
| 6801-32-24-NWO | 32MJ-24MB90 | 2 | 2 1/2-12 | 1 7/8-12 |
| 6801-32-32-NWO | 32MJ-32MB90 | 2 | 2 1/2-12 | 2 1/2-12 |
